The role of the emulsification tank is to dissolve one or more materials (water-soluble solid phase, liquid phase or colloid, etc.) in another liquid phase and hydrate it, which is called a relatively stable emulsion. It is widely used in the emulsification and mixing of raw and auxiliary materials such as nanometer material, glue, p, etc. Some coatings and paints are also emulsified and dispersed, and they are especially suitable for some difficult-sol-like additives such as CMC and xanthan gum.
|
Products Name |

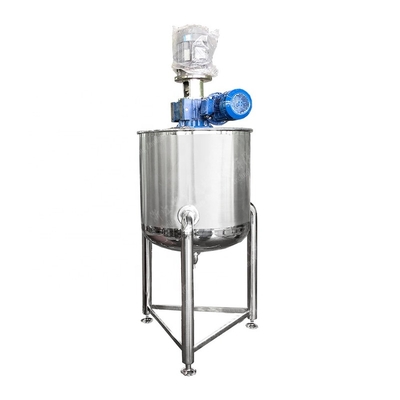

Stainless steel 304 316L scraper high shear Homogenizer Emulsifier mixing tank for cream cheese and milk mixer |
|
Material |
SS304/SS316L |
|
Jacket: full jacket ,dimple jacket , coil tube |
|
|
Insulation layer: PU / rockwool |
|
|
as to the thickness, we can make it according to your requirement. |
|
|
Description: |
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
|
Heating mothed: |
By electricity (oils or water), by steam , circulation heating (hot water or oil) |
|
Configuration: |
1.manhole |
|
2.CIP spraying ball |
|
|
3.adjusting feet |
|
|
4.sight glass |
|
|
5.temperature gauge |
|
|
6.pressure gauge / vacuum gauge |
|
|
7.breather |
|
|
Capacity: |
50L-10000L |
|
Mixer Type: |
High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller ) |
|
Mechanical seal: |
SIC/SiC/EPDM(Standard) |
|
Agitator power: |
0.55kw -75KW |
|
Sealing option: |
Sanitary single mechanical seal/Double mechanical seal with cooling system |
|
Voltage: |
220V -480V |
|
Motor: |
ABB, SIEMENS , SEW , Domestic |
|
Surface treatment: |
Inner polished and outside polished |
|
Availably connection: |
Clamp, Thread Butt weld, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Export Plywood case |
|
Delivery details: |
Usually within 25-30 days after receiving T/T down payment |
Zhengjiang zhonghao machinery co.,Itd. Was found in 1999,before was Tianhe machinery.Is a new comprehensive enterprise with collection of design,development,manufacturing engineering installation and after-sales,service.Our main staineless steel products includ the Extraction tank,concentrator,reaction kettle,Mixing and dispersing equipment,Emulsification machine,Sanitary pump,Colloid mill,ect.Zhonghao adhere to the people-oriented,has served thousands of enterprises.We rely on our own strength, high quality and quality service to win confidence and praise of the global chemical,pharmaceutical,food,environmental manufaturers.
