홈 /제품 소개/호모게니저 혼합 탱크/Liquid With Suspended Solids Cosmetic And Chemicals Emulsifier Homogenizer Hair Wax Shoe Polish 2000l Tank Liquid Soap Mixing Production Line

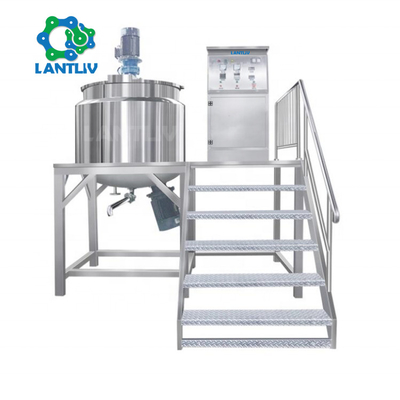

Liquid With Suspended Solids Cosmetic And Chemicals Emulsifier Homogenizer Hair Wax Shoe Polish 2000l Tank Liquid Soap Mixing Production Line

1.0 Sets
MOQ
Liquid With Suspended Solids Cosmetic And Chemicals Emulsifier Homogenizer Hair Wax Shoe Polish 2000l Tank Liquid Soap Mixing Production Line
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Mixer Type: Homogenizer
Barrel Volume (L): 2500
Material Processed: Plastics, Chemicals, Food, Medicine, Cosmetic
Max. Loading Volume (L): 2000 L
Range of Spindle Speed(r.p.m): 1 - 65 r.p.m
Max. Loading Capacity: 2000KG
Weight (KG): 3000 KG
Material: SUS304, SUS304L, SUS316, SUS316L
Condition: New
Product Type: Cosmetic, Shampoo, Soap, Perfume
Application: Liquid with Suspended Solids
Additional Capabilities: Agitator, Heating, Cooling
Voltage: 220V/380V/415V
Dimension(L*W*H): Custom Made
Power (kW): 22 kW
Warranty: 1 Year
Key Selling Points: Flexible Manufacturing
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Daily Chemical Factory, Cosmetic Factory, Pharmaceutical Factory, Liquid Dish Soap Factory
Showroom Location: None
Marketing Type: Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Other, Bearing, Homogenizer
Product name: 2000l Liquid Soap Mixing Machines Production Line
Function: Mixing Raw Material
Application scope: Liquid Washing Products
Layer: 2-3 Layers
Heating: Steam / Electric
Structure: Main Tank, Platform, Stairs
Control: Electric Cabinet
Speed control: Inverter Frequency Control
Discharge: Butterfly Valve Discharge
After-sales Service Provided: Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Video technical support, Spare parts, Field maintenance and repair service
Local Service Location: None
인증: CE
기본 정보
인증: CE
결제 및 배송 조건
제품 설명
Product Description
The machine suitable for mixing different materials. Such as the production of laundry detergent, shampoo, shower gel, mucus mixed with each other, dissolved, mixed evenly. set heating, stirring, homogenization, temperature control, cooling and other functions in one. The machine stirring homogeneous motor are imported, Taiwan Delta frequency control. According to different process requirements heating or cooling material. Optional vacuum pump, vacuum pumping foam. Equipped with operating platform and electric control cabinet, to facilitate the comprehensive monitoring of equipment operation.
Features
1. The mixing system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement.
2. Frequency conversion speed adjustment.
3. Material can be heated or cooled according to your formula (technological requirements).
4. Electric heating or steam heating.
5. Various forms of blending vanes are suitable for production of different types of products.
6. Made of imported sus304 or sus316L, the tank body and pipe are subjected to mirror polishing.
7. Bottom installation type dispersing head and fluko pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed etc.
9. High-speed disperse (Homogenizer) strongly mixed decentralized thick, solid, liquid.
Technical Parameters
Effective capacity
Agitator power and speed
Homogenizer power and speed
Heating power
Capcity
KW
R/MIN
KW
R/MIN
Electric heating
Steam heating
50
0.75
0-65
3
3600
6 KW





Steam heating energy conservation and environmental protection, selected according to need
100
1.5
0-65
1.5
3600
12 KW
150
1.5
0-65
1.5
3600
12 KW
200
1.5
0-65
3
3600
18 KW
300
1.5
0-65
3
3600
18 KW
500
2.2
0-65
4
3600
27 KW
1000
4
0-65
7.5
3600
36 KW
1500
4
0-65
11
3600
45 KW
2000
5.5
0-65
11
3600

recommed steam heating
3000
7.5
0-55
15
3600
5000
11
0-55
22
3600
Remark:
1. For electronic heating, you can add water or conduct oil inside jeckets. However if you heating with conduct oil, there is no cooling.
2. Normally the products can be poured out from bottom outlet, but if you want it not cost too much time, you can connect a rotor pump to pump it out.
3. We provide some spare parts based on experience, and one year warranty for this machine, and provide service for the whole life of the machine in 24 hours. Working video and manual operating will be provided with machine also.

Application

1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, hand cream and so on. 2. Daily chemical industry: laundry liquid production, hand sanitizer, toilet net, car glass water. 3. Pharmaceutical Industry: latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like. 4. Food Industry: sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on. 5. Chemical Industry: latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.
Detailed Images
Agitator pot
1. The working pot is made of 3 layers stainless steel , the contact part is SUS316L, other parts are SUS304 . The thickness of the pot can be customized . 2. The cover fix , the sight glass can be installed to observe the work in the pot , cleaning the pot with universal cleaning ball , from the bottom discharge outlet directly .
3. Jacketed heating, electric heating or steam heating optional . cold water circulate cooling.
4. Homogenizer and temperature sensor install at the tank bottom .
Top Mixer
1. Double direction stirring , the mixing direction of frame mixer with Teflon wall scraper and central paddle are reversed , so the products will be mixed more evenly.
2. Mixing speed is adjustable 0-65rpm , frequency speed control .
Homogenizer
1. Bottom homogenizer is more powerful than tan top homogenizer .
2. Mixing speed can be adjusted 0-3600rpm .
3. All products contact parts are SUS316L, which meet GMP standards .
4. Temperature probe can detect the temperature of products when heating or cooling the jacket .
Operating electric box
Each function can be controlled separately: 1. The working time of homogenize can be set ( suggest 10 minutes ) .
2. Heating temperature can be set according to different formula.
3. Mixing speed of frame mixer and homogenizer mixer is adjustable .
4. Touch screen HMI control panel is optional .
Outlet of finished products
1. Butterfly valve delivery or pump delivery , non residual, Angle of outlet suitable for products discharge easily, fast connection with pipes and pumps .
2. Material: SUS316L .
Workshop production
Packing & Delivery
1. Wrapped with plastic film inside and strong carton case or non-fumigated plywood box outside, it is moisture-proof and suitable for long-distance sea, land and air transportation.
2. Delivery time: 10-20 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
Construction Project
Advantages we have:
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
C. Alibaba golden supplier, factory recognized by 'CE/FSC/ISO9001' and so on .
D. 7/24 service for you, all the question will be dealed within 24hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service — Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
Our Service

Pre-treat Service

1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.

After-sales Service

1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provide.
4. Spare parts replacement and repair service provided.
5. Engineers available to service machinery overseas.

Maintenance Guidence

1. Keep the equipment looks clean, no watermarks, smooth.
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible.
3. Check on the homogeneous blade usually, Are there loose screws.
4. Homogenizer into the water whether the flow, the water solenoid valve is working properly.
5. Check the mixing gear regularly adequacy of the grease, any abnormal sound.
6. We can supply the whole production line.
