Stirred tank is to mix and homogenize the materials. The structure and configuration of stainless steel mixing tank can be standardized and humanized according to the requirements of production process. The mixing tank can realize heating, cooling, feeding control, discharging control, mixing control and other manual and automatic control during the mixing process.
heating mode: the electric heating rod is inserted into the jacket, and the heating is even without cold zone. Heat conducting oil or water is injected into the jacket as the heating medium to generate heat energy to heat and sterilize the materials in the tank.
|
Products Name |

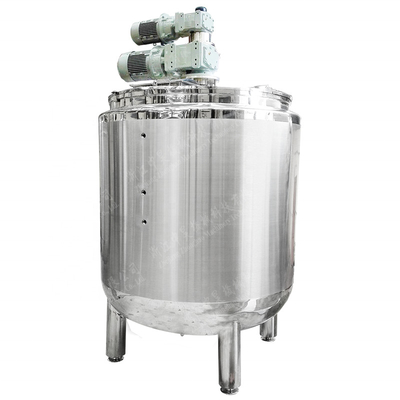

Hot selling 1000L steam heating mixer tank for shampoo miexer homogenizer vessel |
|
Material |
SS304/SS316L |
|
|
Jacket: full jacket ,dimple jacket , coil tube |
|
|
Insulation layer: PU / rockwool |
|
|
as to the thickness, we can make it according to your requirement. |
|
Description: |
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
|
Heating mothed: |
By electricity (oils or water), by steam , circulation heating (hot water or oil) |
|
Configuration: |
1.manhole |
|
|
2.CIP spraying ball |
|
|
3.adjusting feet |
|
|
4.sight glass |
|
|
5.temperature gauge |
|
|
6.pressure gauge / vacuum gauge |
|
|
7.breather |
|
Capacity: |
50L-10000L |
|
Mixer Type: |
High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller ) |
|
Mechanical seal: |
SIC/SiC/EPDM(Standard) |
|
Agitator power: |
0.55kw -75KW |
|
Sealing option: |
Sanitary single mechanical seal/Double mechanical seal with cooling system |
|
Voltage: |
220V -480V |
|
Motor: |
ABB, SIEMENS , SEW , Domestic |
|
Surface treatment: |
Inner polished and outside polished |
|
Availably connection: |
Clamp, Thread Butt weld, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Export Plywood case |
|
Delivery details: |
Usually within 25-30 days after receiving T/T down payment |
Zhengjiang zhonghao machinery technology co.ltd. Was found in 1999,before was Tianhe machinery.
Is a new comprehensive enterprise with collection of design,development,,manufacturing engineering installation and after-sales service.Our main staineless steel products includ the Extraction tank,concentrator,reaction kettle,Mixing and dispersing equipment,Emulsification machine,Sanitary pump,Colloid mill,ect.Zhonghao adhere to the people-oriented,has served thousands of enterprises.We rely on our own strength, high quality and quality service to win confidence and praise of the global chemical,pharmaceutical,food,environmental manufaturers.
